Quickstart

This page explains how to download and install ConfigServer Security & Firewall in very minimal detail. This guide is good for:

  • Users migrating from CSF v14.x or older, to this repository.
  • Users who need a clean install
  • Users who have not enabled the web interface.


If you need detailed instructions, please view the full installation guide.


Summary

The following is a summary of what this page explains:

  • How to download CSF
  • How to install CSF
  • Basic Configuration
  • Enabling the Web Interface
  • Whitelisting your user IP
  • Accessing the CSF Web interface
  • Troubleshooting help



Setup

The instructions below are a very minimized version of our full installation guide. If you want a very quick setup and installation for CSF; follow the instructions below.



Download

Download the latest version of CSF with one of the following commands:

# Using wget (tgz)
wget https://download.configserver.dev/csf.tgz

# Using curl (tgz)
curl -O https://download.configserver.dev/csf.tgz

# Using wget (zip)
wget https://download.configserver.dev/csf.zip

# Using curl (zip)
curl -O https://download.configserver.dev/csf.zip


Extract the contents from the .zip or .tgz archive to your machine:

tar -xzf csf.tgz -C /usr/src/

unzip csf.zip -d /usr/src/



Install

Once CSF is extracted, run the installation script:

sudo sh /usr/src/csf/install.sh



Basic Configuration

Next, we need to edit a few settings in the CSF configuration file. These are the bare minimum to get the CSF and LFD services running, however, you can edit any other settings along the way that you deem appropriate to change. Open the file /etc/csf/csf.conf in a text editor; and edit the following:


Required: You must set TESTING mode to 0 or LFD will not start:

Disable CSF Testing Mode
TESTING = "0"


Optional: If you have a CSF license key from our Sponsor Program, enter it here.

Enable CSF Web Interface
SPONSOR_LICENSE = "XXXXXXX-XXXX-XXXX-XXXX-XXXXXXX"


Required: Enable the CSF web interface:

Enable CSF Web Interface
UI = "1"


Optional: To change the default web interface port, modify the following:

Change Web Interface Port
UI_PORT = "6666"


Optional: This setting tells CSF which network adapter / IP to bind to. If you leave this blank, it will bind to all, which is the equivilent of using 0.0.0.0.

If you wish to place CSF behind a reverse proxy such as Traefuk, and are using Docker for your setup, you can bind to the Docker bridge. Pick ONE of the suggested values below:

Define Network Adapter Bind
UI_IP = ""                              # bind to all IPs
UI_IP = "127.0.0.1"                     # bind to localhost only
UI_IP = "::ffff:172.17.0.1"             # bind to docker bridge


Optional: This setting is not required, but is worth mentioning. Out-of-box, CSF does not allow external access to your install of CSF for good reason. If you are unable to access the CSF web interface, you can temporarily disable this to debug ONLY by setting this value to 0. Do not leave the value set to 0.

Allow Public Access
UI_BLOCK_PRIVATE_NET = "1"


Required: Set an admin username and password. If you keep the default values, LFD will not start.

Set Admin Username & Password
UI_USER = "admin"
UI_PASS = "password"



Whitelist User IPs

Next, we need to whitelist the IP address you will be using to access the CSF web interface. This can be both WAN and LAN IPs, depending on your network structure. If you do not whitelist your IP, you will be unable to access the CSF Web Interface.

Open /etc/csf/ui/ui.allow, and add one IP address per line:

Whitelist IP in Web Interface
127.0.0.1       # localhost / loopback
172.17.0.1      # For Docker users behind a bridge



Restart CSF & LFD

Once everything configured, restart the CSF and LFD services:

sudo csf -ra


Confirm there are no errors by viewing the file /var/log/lfd.log. If you see any errors similar to the following, this means you have not whitelisted the correct IP address within /etc/csf/ui/csf.allow:

Check for Errors
lfd[5001]: UI: Access attempt from an IP not in /etc/csf/ui/ui.allow - denied [127.0.0.1]



Access Web Interface

To access the CSF web interface, open your browser and navigate to the local IP address associated with the machine that CSF is installed to. In our guide above, we changed the default port to 8765, so we will navigate there:

https://127.0.0.1:8765


If you are unable to view the CSF web interface, visit our Troubleshooting section below.

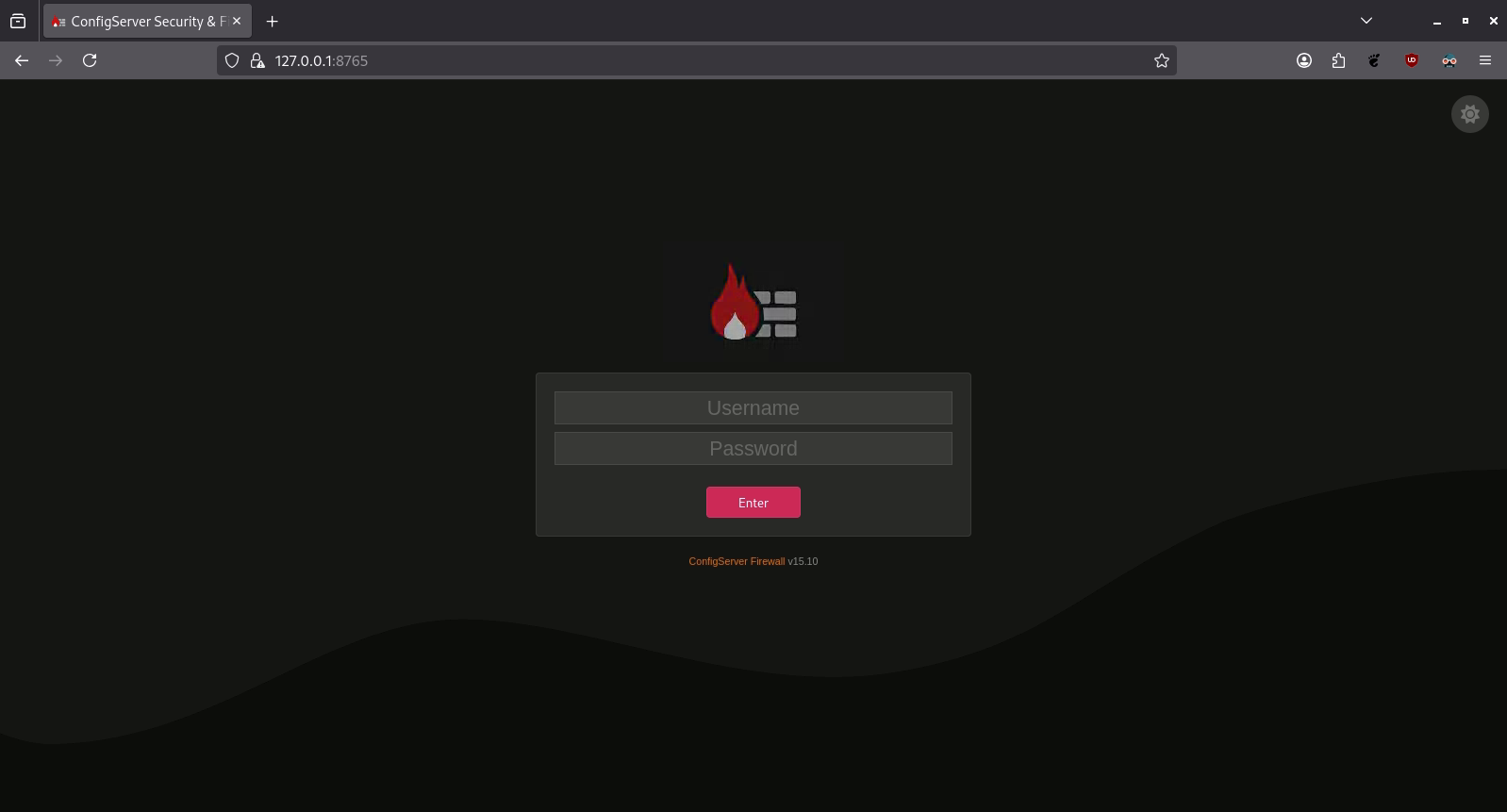

CSF Web Interface
CSF Web Interface


Enter the username and password you defined in your /etc/csf/csf.conf as:

Set Admin Username & Password
UI_USER = "admin"
UI_PASS = "password"





Troubleshooting

The following is a list of questions a user may have regarding updates to CSF, and information about certain issues that may arise:


LFD: Cannot Start Service

Confirm if LFD service is running:

sudo systemctl status lfd


If the service says Stopped or Failed, run the following tail command to look at the LFD logs located in /var/log/lfd.log:

sudo tail -n 50 /var/log/lfd.log

lfd[99819]: *Error* lfd will not run with TESTING enabled in /etc/csf/csf.conf, at line 98
lfd[99819]: daemon stopped


If you see the output above, you must disable TESTING. Open the file /etc/csf/csf.config:

/etc/csf/csf.conf
TESTING = "1"
/etc/csf/csf.conf
TESTING = "0"


Also ensure that you have changed the default username and password in your /etc/csf/csf.conf. You cannot use the default values.

Set Admin Username & Password
UI_USER = "admin"
UI_PASS = "password"


Finally, make sure you have whitelisted the IP address you will use to access the CSF web interface. Open /etc/csf/ui/csf.allow and add your IP to the file, one IP-per-line:

Whitelist IP in Web Interface
127.0.0.1       # localhost / loopback
172.17.0.1      # For Docker users behind a bridge


Restart CSF and LFD services:

sudo csf -ra
sudo systemctl start lfd


Confirm the status of LFD again:

sudo systemctl status lfd


If none of the above helps you solve it, you can also try to run LFD with strace:

sudo strace -f /usr/sbin/lfd --check

rt_sigaction(SIGRT_25, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGRT_26, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGRT_27, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGRT_28, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGRT_29, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGRT_30, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGRT_31, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGRT_32, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGABRT, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGCHLD, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGIO, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
exit_group(0)                           = ?
+++ exited with 0 +++


Using strace will give you hints of any issues or errors. In the example above, lfd exits with error code 0, which means “success / no error”. The program is choosing to shut itself down and telling the OS “I finished cleanly”.

This tells us that it's not due to something failing. When a daemon exits cleanly (exit code 0), you usually have to look inside lfd's own logs, not just systemd’s.

In the examples above, we see in /var/log/lfd.log that it was due to us having TESTING enabled.

Another option for checking failure reasons is to run:

sudo dmesg -T | tail -n 20


You can also check journalctl for any errors:

sudo journalctl -xeu lfd.service


All of the listed methods above will help you narrow down exactly why LFD or CSF are not starting properly.

Web Interface: Browser says access restricted using default port 6666

Out-of-box, Firefox and Chromium-based browsers block access to port 6666. To access the CSF web interface, you must do ONE of the following:

  • Cconfigure your browser to allow access to port 6666; OR
  • Change the default port assigned to the CSF web interface within /etc/csf/csf.conf

To allow port 6666 in your browser, follow the instructions on the page Troubleshooting › Address Restricted

To change the port used for the CSF web interface, follow the instructions on the page Install › Web Interface › Setup.



Next Steps

Select what documentation you would like to proceed with next ...

  •   Full Installation Guide

    If the quickstart guide doesn’t work for your setup, the full installation guide provides clear, step-by-step instructions to install CSF properly.

    The guide is split into multiple pages, with each page covering a single stage of the setup process in detail.

    The full instructions will start on the Install: Dependencies page.

  •   Enable Web Interface

    The web interface lets you manage your firewall through a browser instead of a command line.

    This chapter covers installation of dependencies, enabling the interface, and whitelisting your IP for security.
